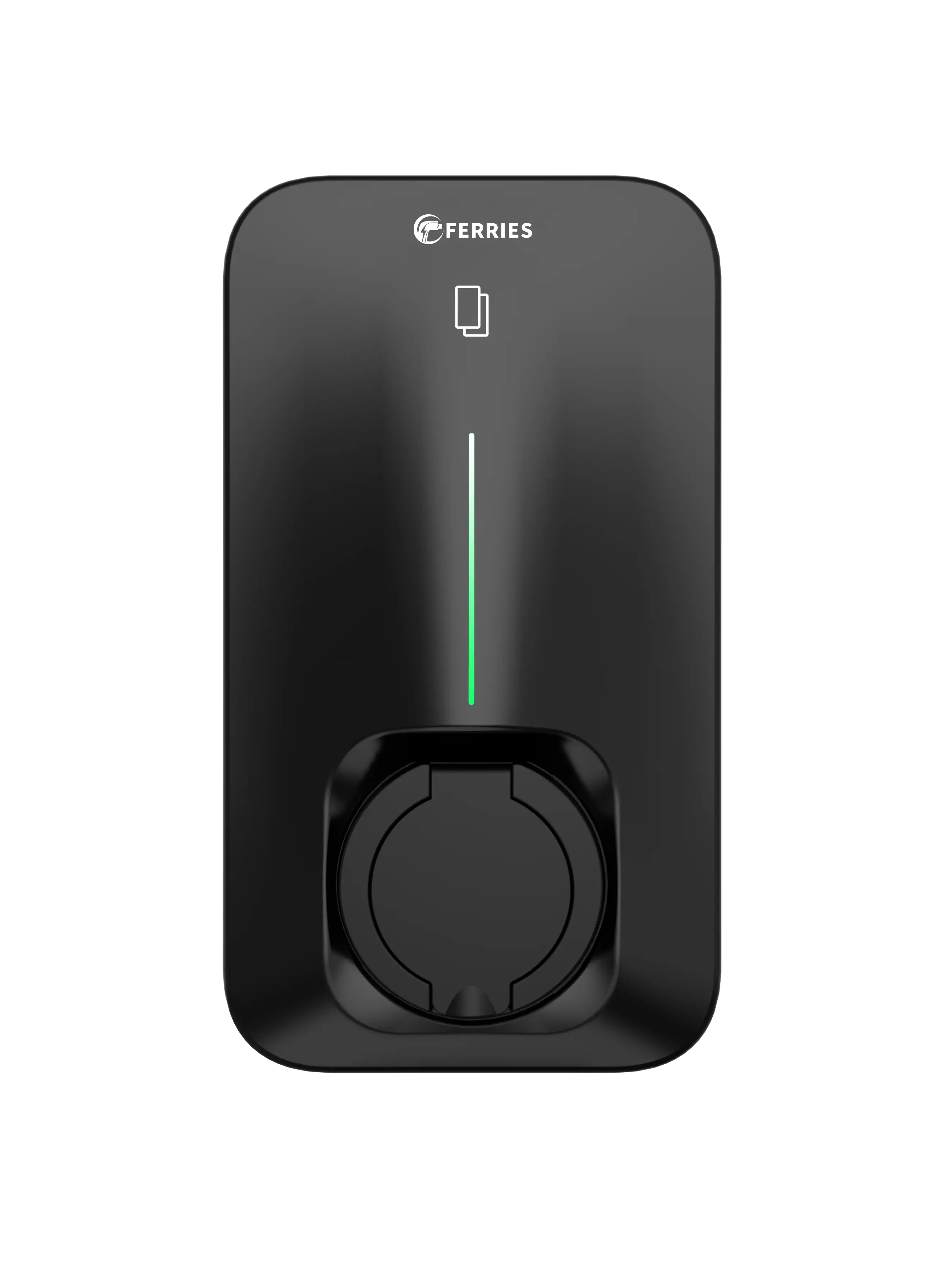

Vela Series AC Wallbox Type 2 socket
Data acquisition
Product specifications
Electrical Properties
| Charging mode | Mode 3 |
| Charging capacity | 7kW/11kW/22kW |
| Input/Output current | Single phase up to 7kW/32A, Three phase 11kW/16A or 22kW/32A |
| Input/Output voltage | 230V±15%, single phase; 400V±15%, three phase; 50Hz |
| Connector type | IEC 62196-2 ed.1.0 Type 2 |
Communication
| Connectivity | Bluetooth, Wi-Fi, 4G, Ethernet |
Interaction
| Startup mode | Plug&Charge / RFID card / App |
| Status indicator | LED |
Safety
| Enclosure rating | IP55(socket)/IP65(cable) |
| Flameretardant rating | UL94-V0 |
| Compressive strength | IK10 |
| Residual operating current | Type A+DC 6mA |
| Safety standard | EN.IEC 61851-1:2019 |
| Certification | CE, RoHS |
Environment parameters
| Mounting | Wall/Pole |
| Operating temperature | -25°C~+50°C |
| Storage temperature | -30°C~+70°C |
| Operating humidity | 5%~95%, non-condensation |
| Operating altitude | ≤2000m |
Physical properties
| Housing | PC |
| Color | Pearl White/Starry Black/Glacier Gray |
